Kerberos Configuration

Page Contents
  1. Login Provider Configuration
    1. KERBEROS_AUTH_ENABLED
    2. KERBEROS_KEYTAB
    3. How to Configure Kerberos Authentication in Launchpad
    4. Troubleshooting

Kerberos

Kerberos can be used as a login provider to authenticate users into Launchpad. Kerberos does not currently support SSO connections to Stardog endpoints.

Login Provider Configuration

The following configuration options are available to use Kerberos authentication to log users into Launchpad. When users are successfully authenticated with Kerberos, they will be logged into Launchpad without needing to enter any credentials. Their username will be derived from the Kerberos principal name used to authenticate.

KERBEROS_AUTH_ENABLED

The KERBEROS_AUTH_ENABLED is used to enable or disable Kerberos authentication to log users into Launchpad.

  • Required: Yes (if using Kerberos)
  • Default: false

KERBEROS_KEYTAB

The KERBEROS_KEYTAB is the path (in the Docker container) to the Kerberos keytab file used to authenticate users with Kerberos. The keytab file should contain the credentials for the Kerberos service principal (e.g. HTTP/launchpad-hostname@<REALM>) that will be used to authenticate users.

  • Required: Yes (if using Kerberos)
  • Default: not set

How to Configure Kerberos Authentication in Launchpad

Kerberos authentication provides secure, single sign-on access to Launchpad and connected Stardog endpoints without requiring users to enter credentials repeatedly.

  1. Create the Launchpad service principal.

    In a kadmin shell, run the following command to create the service principal:

    addprinc -randkey HTTP/<launchpad-hostname>@<REALM>

    Replace <launchpad-hostname> with the hostname of the server where Launchpad is running (should match BASE_URL), and <REALM> with your Kerberos realm (e.g. MYCOMPANY.COM).

  2. Create a keytab file for the Launchpad service principal. This keytab file will be used to authenticate users with Kerberos.

    ktadd -k /path/to/launchpad-mount/launchpad.keytab HTTP/<launchpad-hostname>@<REALM>

  3. Configure Launchpad

    Add the following environment variable to your Launchpad configuration:

    KERBEROS_AUTH_ENABLED=true
KERBEROS_KEYTAB=/kerberos-config/launchpad.keytab

    The KERBEROS_KEYTAB should point to the keytab file in the Docker container. It needs to mounted to the container at the path specified in the environment variable. For example, if you are using Docker, you can mount the keytab file to the container using the -v flag:

    docker run \
 --env-file /path/to/launchpad/.env.launchpad \
 -p 8080:8080 \
 -v /path/to/launchpad/data:/data \
 -v /path/to/launchpad-mount/launchpad.keytab:/kerberos-config/launchpad.keytab \
 stardog/launchpad:<tag>

  4. Configure your browser to negotiate Kerberos authentication with Launchpad. This step is browser-specific and involves adding the Launchpad URL to the list of trusted sites for Kerberos authentication. You may need to restart your browser after making these changes.

    Firefox

    • Navigate to about:config
    • Modify these settings:
      • network.negotiate-auth.trusted-uris: Add the value set for BASE_URL
      • network.negotiate-auth.delegation-uris: Add the value set for BASE_URL
    • Restart Firefox for changes to take effect

    Chrome

    This varies between operating systems. On macOS, run the following commands in a terminal to add the Launchpad URL to the list of trusted sites for Kerberos authentication:

    defaults write com.google.Chrome AuthServerAllowlist "your-launchpad-url.com"
defaults write com.google.Chrome AuthNegotiateDelegateAllowlist "your-launchpad-url.com"
    • Restart Chrome for changes to take effect

    If you are using a different browser, please refer to the browser’s documentation on how to configure Kerberos authentication. Most (if not all) browsers by default do not allow Kerberos authentication for arbitrary URLs, so you must configure the browser to trust your Launchpad URL.

  5. Obtain a Kerberos ticket for a regular user account.

    This may involve running the kinit command in a terminal, or using a Kerberos client application to obtain a ticket.

    kinit <username>@<REALM>

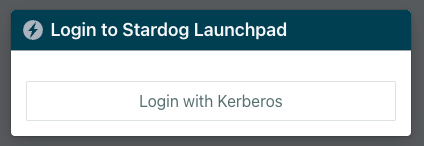

  6. Access Launchpad and click on the “Login with Kerberos” button. You should be automatically logged in. Kerberos Login

  7. Connect to Stardog endpoints using Kerberos authentication.

    a. Ensure the user account has access to your Stardog endpoints and that your browser is configured to trust those endpoint URLs for Kerberos authentication.

    b. In Launchpad, click “Add an Endpoint”.

    c. Toggle the Connect using browser authentication switch. This will use the Kerberos ticket you obtained earlier to authenticate with the Stardog endpoint.

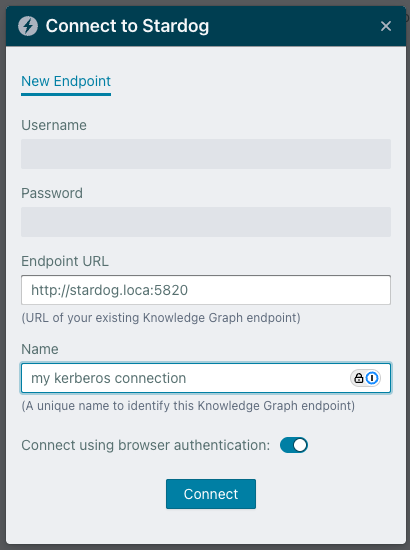

Kerberos Connection

Troubleshooting

Authentication fails:

  • Verify your Kerberos ticket is valid by running klist
  • Ensure the browser is configured to trust the Launchpad URL
  • Check that the service principal was created correctly
  • Confirm the keytab file is accessible by the Launchpad container
